Specification

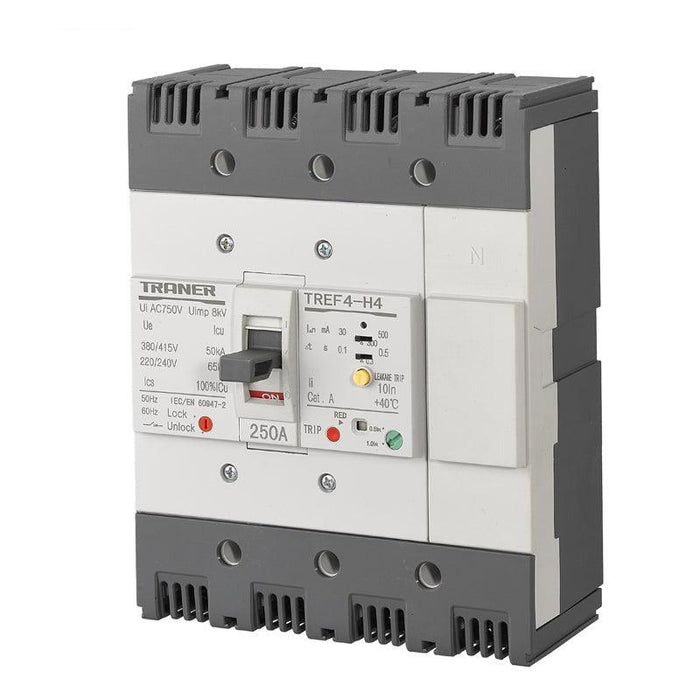

TREF4-250H-4P 3 Phase Rcbo 200A Mccb Earth Fault Protection 30mA~500mA Adjustable elcb 3 phase,earth leakage circuit breaker price ,molded circuit breaker,molded case circuit breaker

please send us email to: info@electric-b2c.com for bulk purchasing

About this item

• Residual Current Adjuatable: 30mA-500mA
• Tripping Time Adjustable: 0.1s-0.5s(time delay ELCB)
• Distribute Electric Energy - Mainly used to distribute electric energy and protect circuits and power equipment from overload, short circuit, earth leakage, under voltage and other faults
• Good Flame Retardancy - The thermosetting material has good flame retardancy, will only gradually carbonize even if encounters an open flame, and will not burn, so that is safe
• Suitable For Extreme Environments - Rated current for 250A, frequency is 50/60Hz. Environmental operating temperature from 20℃60℃, suitable for more extreme environments
• Short Circuit And Overload Protection - Possess the characteristics of small size, short circuit protection, overload protection, flame retardant shell, high segmentation, short arcing, etc.
• Protection Of Motor - Can also be used for infrequent starting and overload, short circuit and under voltage protection of the motor

If need 3 Phase RCBO 250A with remote control of Shunt trip, pls check link: Shunt Trip Breaker
Product Description

Item Type: Moulded Case Circuit Breaker
Model: TREF4-250/4P

Product Dimension(L*W*H): 165x140x60mm
Material: Thermoplastic PA6+ contact copper
Frame Current(AF): 250A
Frequency: 50/60Hz
Rated Insulation Voltage (Ui): AC 400V
Rated Voltage (Ue): AC 440V
Rated Impulse Withstand Voltage (Uimp): 8KV

Rated short-circuit Breaking Capacity, Icu: 8kA
Ics=100%Icu Cat A
TREF4-250H-4P 3 Phase Rcbo 200A Mccb Earth Fault Protection 30mA~500mA Adjustable

Package List:

2 x Terminal Cover
1 x Circuit Breaker
6 x Partition Board
1 x Screw Pack
