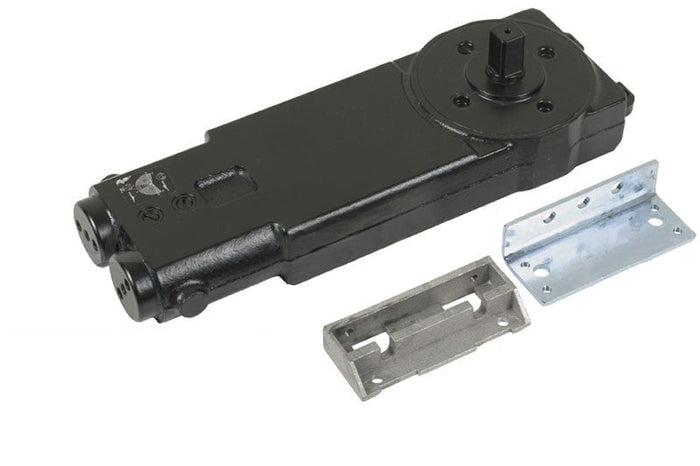

A.D.A. 105° Overhead Concealed Door Closer Body – No Hold Open with 3/4" Extended Spindle for Commercial Doors

The A.D.A. 105° Overhead Concealed Door Closer Body is designed for commercial door applications, providing smooth and controlled closing performance with A.D.A. compliant operation. Engineered for double acting doors, this closer delivers reliable performance for aluminum and hollow metal doors in high-traffic environments without hold-open functionality.

Sold by: Each
Closer Type: Overhead Concealed
Function: No Hold Open (105° Opening)
Handing: Double Acting
A.D.A. Compliant: Yes (8.5 lbs Opening Force)
Maximum Door Weight: 200 lbs
Maximum Door Width: 36" (Interior and Exterior)
Recommended Door Height: Up to 96"
Recommended Door Type: Aluminum, Hollow Metal

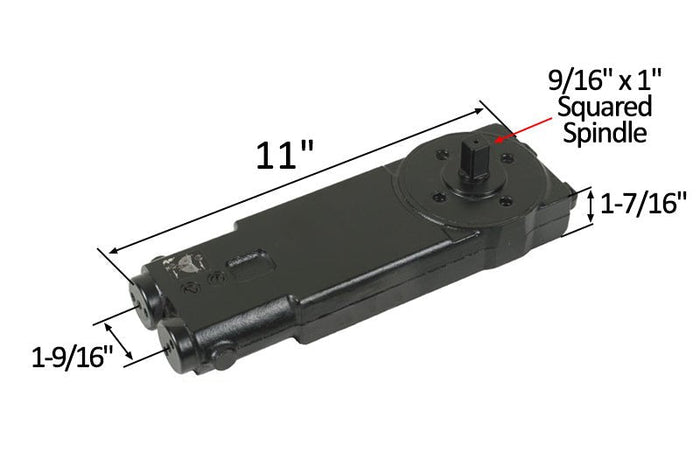

Body Length: 11-5/8"
Body Width: 3-11/16"
Body Height: 1-11/16"
Spindle Size: 3/4" (Extended)
Spring Size: 8.5
Adjustments: Independent Closing and Latching Speed Valves
UL Listed: Yes
Compatibility: Interchangeable with Jackson® and Similar Closers
Includes: Mounting Clips, Templates, Instructions
Part Number: CH-614

Constructed for durability and precision performance, this concealed closer body supports doors weighing up to 200 lbs and is recommended for doors up to 36" wide and 96" high. The extended 3/4" spindle is ideal for use with patch fittings and door rail hardware, ensuring proper fit and efficient operation in specialized door systems.

Designed with dual action valves, this closer allows independent adjustment of closing and latching speeds for optimal control. Interchangeable with Jackson® and similar overhead concealed closers, it provides flexibility for replacement or new installations. Each unit includes mounting clips, templates, and instructions for a complete and convenient installation.
