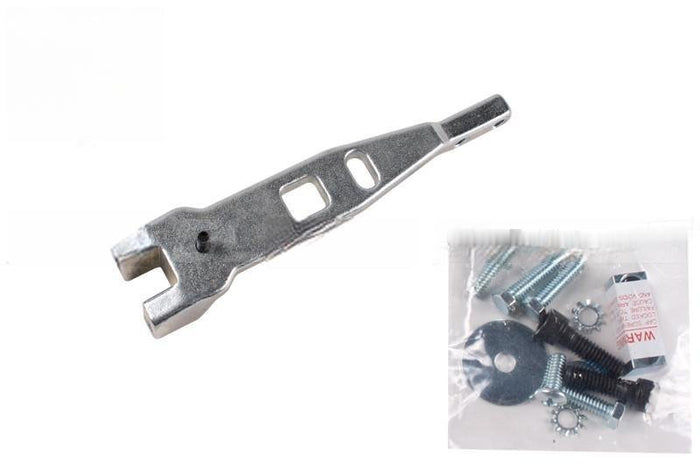

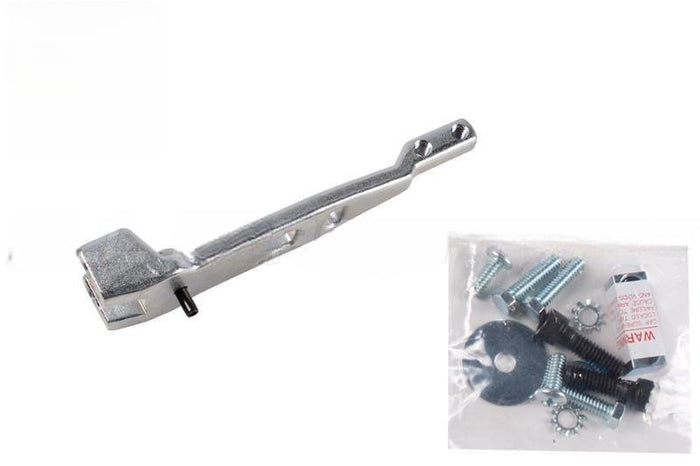

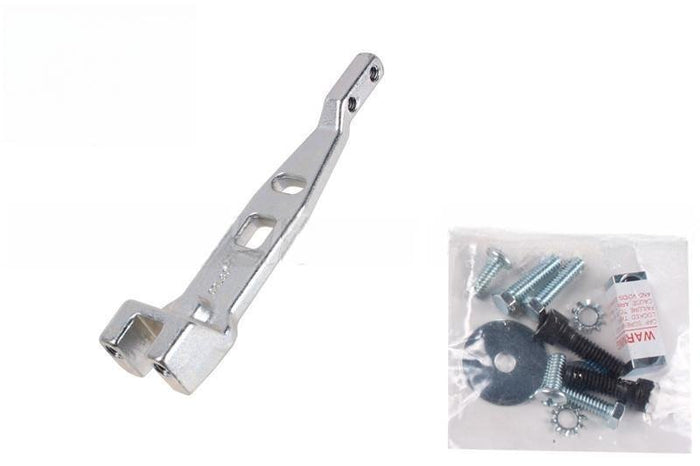

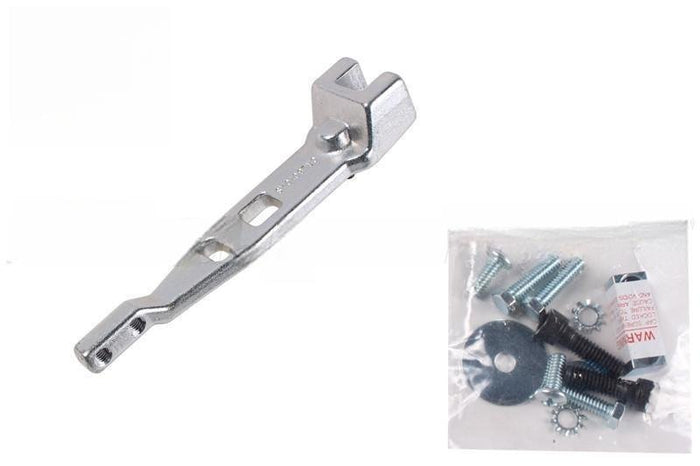

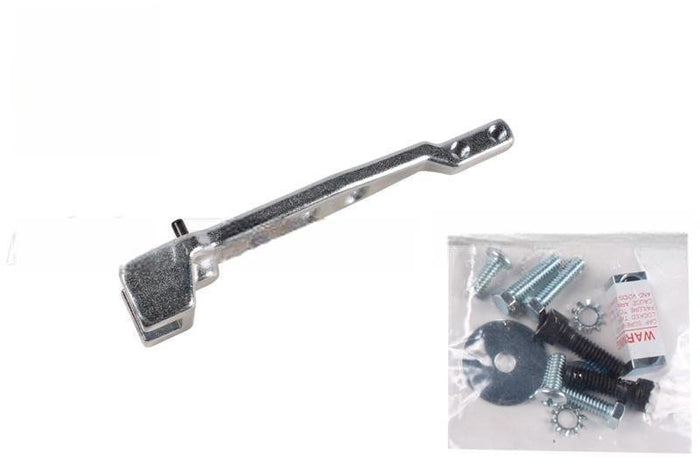

Short End-Load Center-Hung Top Arm Assembly – Concealed Door Closer Arm for 1" Top Rails

The Short End-Load Center-Hung Top Arm Assembly is designed for commercial door applications, providing reliable operation for overhead concealed door closer systems. Ideal for center-hung doors, this arm assembly ensures smooth and controlled door movement in high-traffic environments.

Sold by: Each
Type: Short End-Load Arm Assembly
Application: Center-Hung Doors with Concealed Closers
Minimum Top Rail Depth: 1" (25.4 mm)
Compatibility: Wedge-Lock® Door Rail Systems
Function: Door Closer Arm Connection and Controlled Operation
Part Number: CH-522

Constructed for durability and consistent performance, this short end-load arm is engineered to deliver efficient force transfer and dependable closing action. Its compact design makes it well-suited for applications requiring a shorter arm configuration without compromising functionality.

Specifically designed to fit Wedge-Lock® door rail systems, this arm assembly is compatible with overhead concealed closers and requires a minimum top rail depth of 1". Perfect for commercial storefront and glass door systems, it provides a secure and precise connection for optimal door control.
