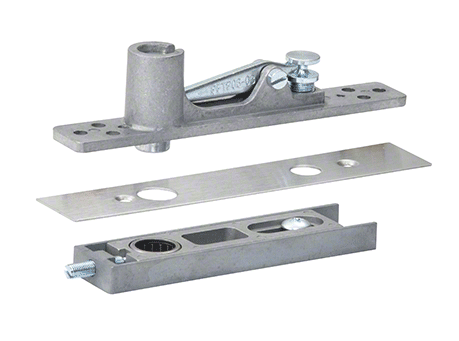

Center-Hung Top Pivot Set – Brushed Stainless Steel Walking Beam Pivot for Storefront Doors

The Center-Hung Top Pivot Set with Brushed Stainless Cover is designed for commercial aluminum storefront doors, providing smooth, controlled door movement in center-hung pivot systems. This walking beam top pivot is ideal for use with floor closers and free-swinging floor pivots, ensuring reliable and balanced door operation.

Sold by: Each
Finish/Color: Brushed Stainless Steel
Pivot Type: Center Hung (Walking Beam)
Handing: Non-Handed
Pivot Pin Diameter: 19/32" (15 mm)
Top Door Clearance: Up to 1/2" (13 mm)
Adjustment: Lateral Adjustable Door Arm
Mounting Type: Fully Mortised
Includes: Finished Cover Plate
Recommended Door Type: Aluminum Storefront Doors
Part Number: CH-501

Constructed for durability and precision, this pivot set features a brushed stainless steel finish and includes a finished cover plate for a clean, professional appearance. The lateral adjustable door arm allows for precise alignment, helping ensure the door remains plumb and operates smoothly over time.

Designed as a fully mortised, non-handed unit, this pivot accommodates a 19/32" (15 mm) diameter pivot pin and allows for up to 1/2" (13 mm) of top door clearance. It is an excellent replacement or upgrade for commercial entry systems requiring dependable pivot hardware.
